Description

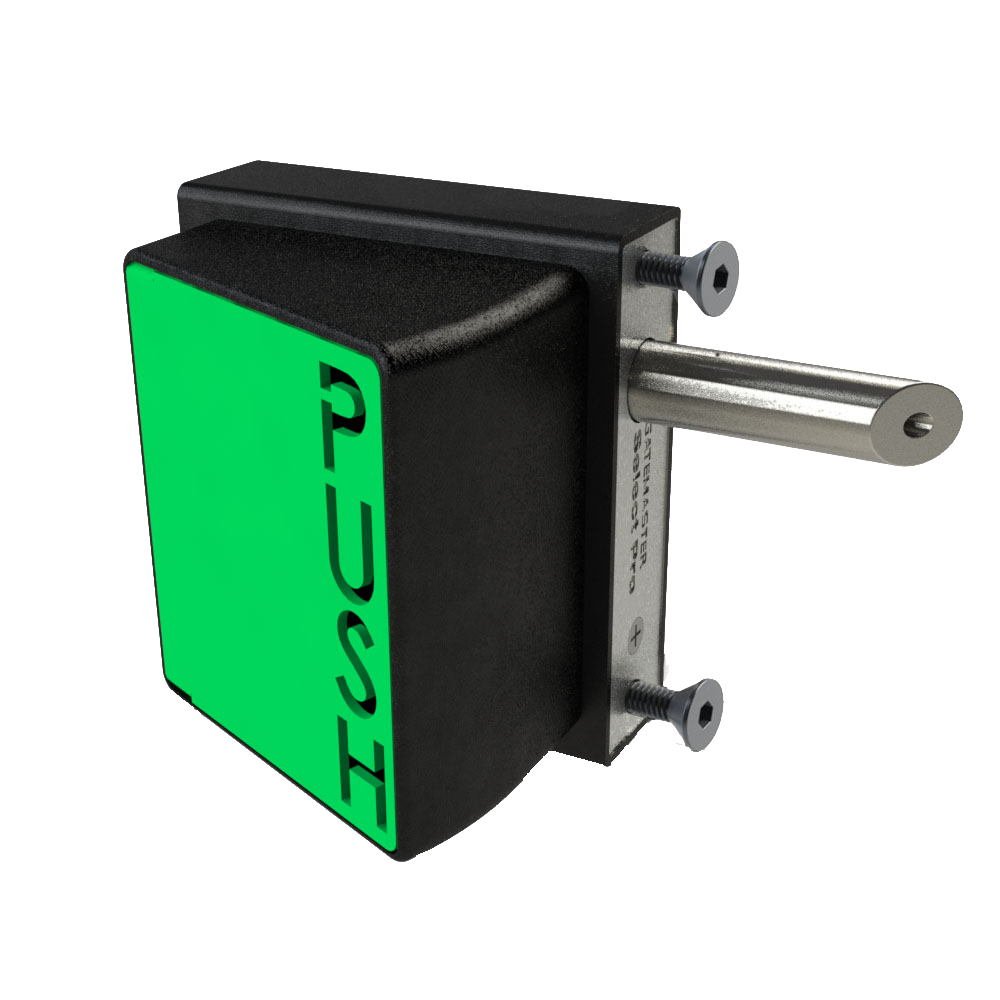

The quick exit one sided gate lock has a push pad only on the inside, allowing for exit from the inside only. The lock automatically latches shut when the gate is closed. Simply drill three holes in the gate frame to fit.
KEY FEATURES
- Easy to fit to the gate, simply drill 3 holes in the gate frame
- Available as either a left or right hand lock
- 16mm one piece machined stainless steel latchbolt
- Latchbolt moves 20mm

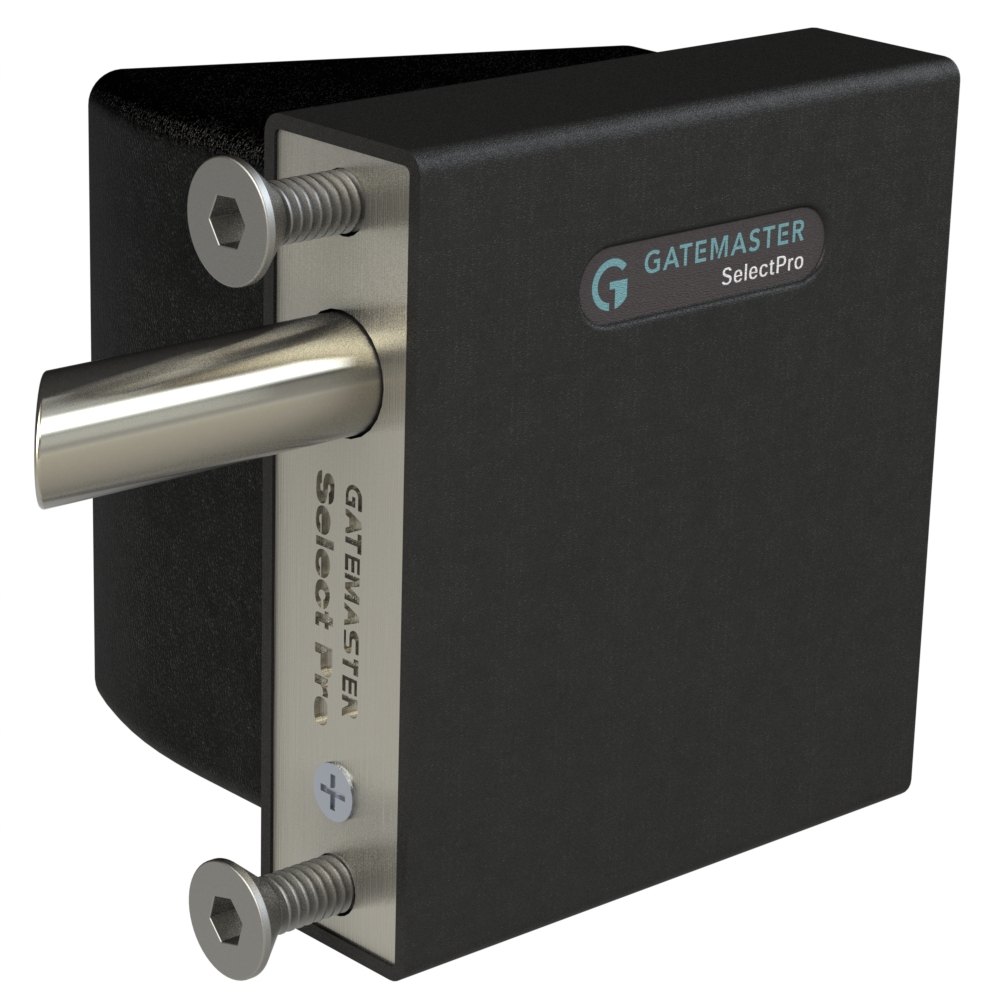

- Security shroud available to prevent access to the pad from the outside (order separately)
PRODUCT OPTIONS
- SBQEL01NA – To fit 10-30mm gate frames, left hand
- SBQER01NA – To fit 10-30mm gate frames, right hand
- SBQEL02NA – To fit 40-60mm gate frames, left hand
- SBQER02NA – To fit 40-60mm gate frames, right hand
Not sure which handing you need? Find out by watching this video from Gatemaster.

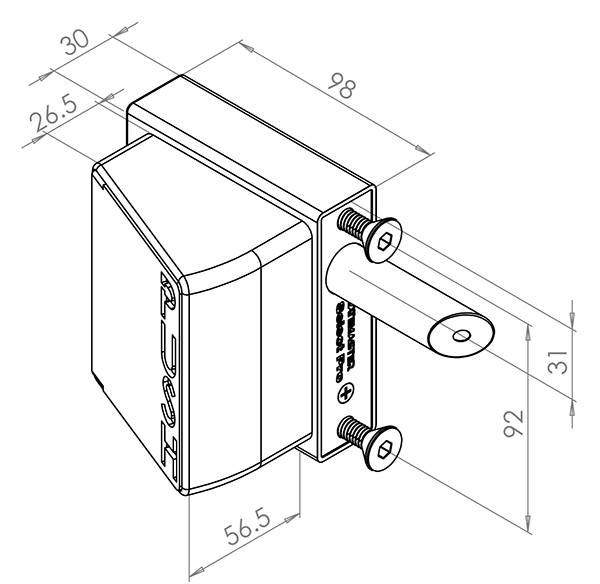

To find the correct size of your lock, you have to measure the thickness of the gate frame. View the diagram in the pictures above to see what to measure.
INSTALLATION
Download the spec sheet above (see: Product Download).
